(API)Route not found > schema/diff

Mario 0

Hi there,

I'm trying to connect to server.tld/schema/diff & ./schema/apply via method POST but my instance always replies with a 404 "route not found".

Version is 11.12.0
(API)User has Admin-Permissions
for example ./schema/snapshot is just working fine

Could it be that these two endpoints are "blocked" in cloudron directus apps? Can we "activate" them? Or should they work and the problem sits in front of the screen

Kind regards
Mario

james

Hello @Mario-0

Setting a user token to make the API calls less difficult but auth/login can also be used.
Create a collection and added a test_input field.

Getting the current schema and storing it into schema.json

curl --request GET --header 'Authorization: Bearer 3F410Ia783fuxm3OanzRIVyMzXS3Y77f' https://io.directus9.cloudronapp.cloudron.dev/schema/snapshot > schema.json

Adding another test Input field and store it to schema2.json.
Getting a snapshot again:

curl --request GET --header 'Authorization: Bearer 3F410Ia783fuxm3OanzRIVyMzXS3Y77f' https://io.directus9.cloudronapp.cloudron.dev/schema/snapshot > schema2.json

Getting the diff and storing it into diff.json:

curl --request POST -H "Content-Type: application/json" --data "$(yq .data schema.json)" --header 'Authorization: Bearer 3F410Ia783fuxm3OanzRIVyMzXS3Y77f' https://io.directus9.cloudronapp.cloudron.dev/schema/diff > diff.json

Applying the diff.json.

curl --request POST -H "Content-Type: application/json" --data "$(yq .data diff.json)" --header 'Authorization: Bearer 3F410Ia783fuxm3OanzRIVyMzXS3Y77f' https://io.directus9.cloudronapp.cloudron.dev/schema/apply

I can see in the WebUI that the Schema was reverted with the diff.

Mario 0

Thanks a lot for your support 🤩

The "problem" was that I tried to send "pure" JSON to the diff-endpoint and this ended up in route not found (IMO not the best hint).
With parsing json to yaml --data "$(yq .data schema.json)" the endpoint worked like expected.

But why ist JSON not working!?

[...]Compare the current instance's schema against the schema snapshot in JSON request body and retrieve the difference. [...] Alternatively, upload a JSON or YAML schema file. (ref: https://directus.io/docs/api/schema#retrieve-schema-snapshot)

Also I'm wondering if my approach is the "best" solution:

schema/snapshot > prod.json
work on the snapshot schema locally and track/commit changes to git-repo (prod.json > local.json)
schema/diff (edited) local.json against server > diff.json
schema/apply diff.json on server

Thanks for your support
Mario

james

Hello @Mario-0

@Mario-0 said in (API)Route not found > schema/diff:

With parsing json to yaml

"$(yq .data schema.json)" does not parse JSON to YAML.
The command above returns the value inside the "data":{} object and yq does garbage in garbage out JSON<=>JSON.
Using yq here might have been a little misleading.

I use the tool yq because, in my opinion, it offers a better feature set then jq which is just for JSON.

The data you get from /schema/snapshot is nested inside the object "data":{} so in order to use the data you have to "step into" the .data object.
That is what I am doing with $(yq .data schema.json).
Same with the response from /schema/diff.
To POST the JSON inside "data":{} you have to "step into" the .data object.

Example:

curl --request GET --header 'Authorization: Bearer kJ7B6RXawG7C6Hc14AWpturoM3R_5t-r' https://directus.cloudron.dev/schema/snapshot
{"data":{"version":1,"directus":"11.12.0","vendor":"postgres","collections":[{"collection":"Cloudron_Forum_Example","meta":{"accountability":"all","archive_app_filter":true,"archive_field":null,"archive_value":null,"collapse":"open","collection":"Cloudron_Forum_Example","color":null,"display_template":null,"group":null,"hidden":false,"icon":null,"item_duplication_fields":null,"note":null,"preview_url":null,"singleton":false,"sort":null,"sort_field":null,"translations":null,"unarchive_value":null,"versioning":false},"schema":{"name":"Cloudron_Forum_Example"}}],"fields":[{"collection":"Cloudron_Forum_Example","field":"id","type":"integer","meta":{"collection":"Cloudron_Forum_Example","conditions":null,"display":null,"display_options":null,"field":"id","group":null,"hidden":true,"interface":"input","note":null,"options":null,"readonly":true,"required":false,"sort":1,"special":null,"translations":null,"validation":null,"validation_message":null,"width":"full"},"schema":{"name":"id","table":"Cloudron_Forum_Example","data_type":"integer","default_value":"nextval('\"Cloudron_Forum_Example_id_seq\"'::regclass)","max_length":null,"numeric_precision":32,"numeric_scale":0,"is_nullable":false,"is_unique":true,"is_indexed":false,"is_primary_key":true,"is_generated":false,"generation_expression":null,"has_auto_increment":true,"foreign_key_table":null,"foreign_key_column":null}},{"collection":"Cloudron_Forum_Example","field":"Data_Input_Text","type":"string","meta":{"collection":"Cloudron_Forum_Example","conditions":null,"display":null,"display_options":null,"field":"Data_Input_Text","group":null,"hidden":false,"interface":"input","note":null,"options":null,"readonly":false,"required":false,"sort":2,"special":null,"translations":null,"validation":null,"validation_message":null,"width":"full"},"schema":{"name":"Data_Input_Text","table":"Cloudron_Forum_Example","data_type":"character varying","default_value":null,"max_length":255,"numeric_precision":null,"numeric_scale":null,"is_nullable":true,"is_unique":false,"is_indexed":false,"is_primary_key":false,"is_generated":false,"generation_expression":null,"has_auto_increment":false,"foreign_key_table":null,"foreign_key_column":null}}],"relations":[]}}

for better understanding:

{"data":{INSIDE_HERE_IS_THE_DATA_YOU_WANT}}

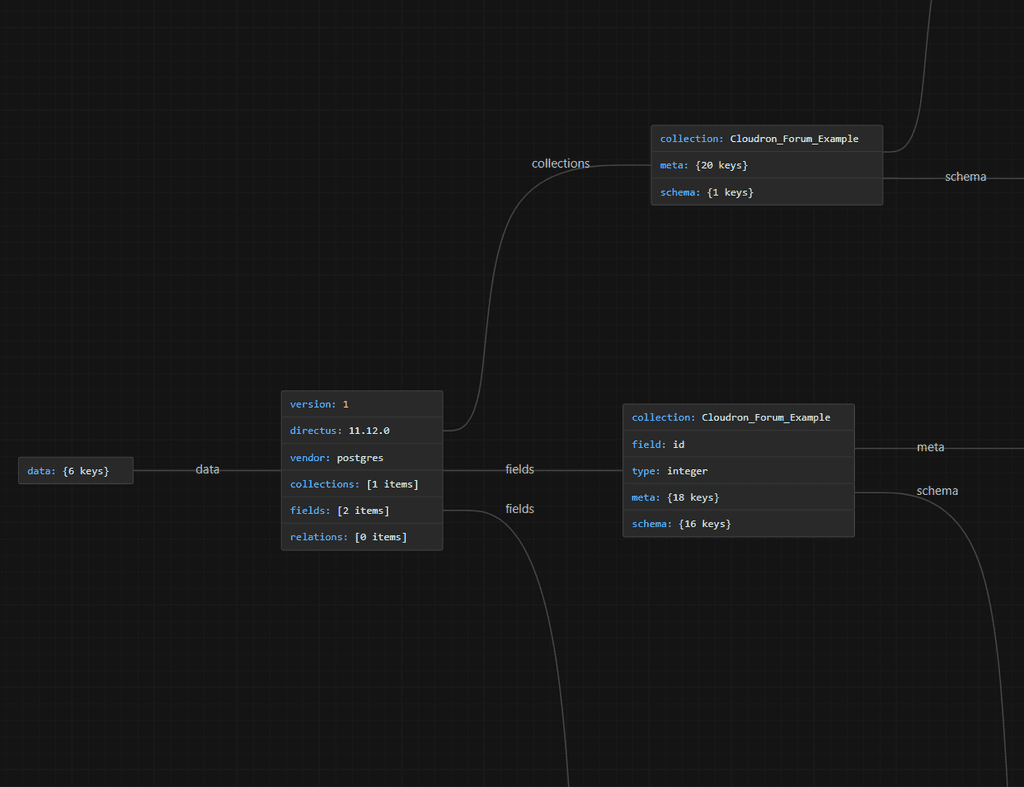

If you put the whole JSON Object inside a visualizer like e.g. https://jsoncrack.com/editor the visual might help.

You can also append yq to the CURL request so you get the data directly.
I also added --prettyPrint and --output-format=json for bedder readability here in the forum.
Note: yq can work with yaml and json and with certain parameters, like --prettyPrint the default output is yaml, so you need to define --output-format=json.

curl -s --request GET --header 'Authorization: Bearer kJ7B6RXawG7C6Hc14AWpturoM3R_5t-r' https://directus.cloudron.dev/schema/snapshot | yq .data --prettyPrint --output-format=json

{
  "version": 1,
  "directus": "11.12.0",
  "vendor": "postgres",
  "collections": [
    {
      "collection": "Cloudron_Forum_Example",
      "meta": {
        "accountability": "all",
        "archive_app_filter": true,
        "archive_field": null,
        "archive_value": null,
        "collapse": "open",
        "collection": "Cloudron_Forum_Example",
        "color": null,
        "display_template": null,
        "group": null,
        "hidden": false,
        "icon": null,
        "item_duplication_fields": null,
        "note": null,
        "preview_url": null,
        "singleton": false,
        "sort": null,
        "sort_field": null,
        "translations": null,
        "unarchive_value": null,
        "versioning": false
      },
      "schema": {
        "name": "Cloudron_Forum_Example"
      }
    }
  ],
  "fields": [
    {
      "collection": "Cloudron_Forum_Example",
      "field": "id",
      "type": "integer",
      "meta": {
        "collection": "Cloudron_Forum_Example",
        "conditions": null,
        "display": null,
        "display_options": null,
        "field": "id",
        "group": null,
        "hidden": true,
        "interface": "input",
        "note": null,
        "options": null,
        "readonly": true,
        "required": false,
        "sort": 1,
        "special": null,
        "translations": null,
        "validation": null,
        "validation_message": null,
        "width": "full"
      },
      "schema": {
        "name": "id",
        "table": "Cloudron_Forum_Example",
        "data_type": "integer",
        "default_value": "nextval('\"Cloudron_Forum_Example_id_seq\"'::regclass)",
        "max_length": null,
        "numeric_precision": 32,
        "numeric_scale": 0,
        "is_nullable": false,
        "is_unique": true,
        "is_indexed": false,
        "is_primary_key": true,
        "is_generated": false,
        "generation_expression": null,
        "has_auto_increment": true,
        "foreign_key_table": null,
        "foreign_key_column": null
      }
    },
    {
      "collection": "Cloudron_Forum_Example",
      "field": "Data_Input_Text",
      "type": "string",
      "meta": {
        "collection": "Cloudron_Forum_Example",
        "conditions": null,
        "display": null,
        "display_options": null,
        "field": "Data_Input_Text",
        "group": null,
        "hidden": false,
        "interface": "input",
        "note": null,
        "options": null,
        "readonly": false,
        "required": false,
        "sort": 2,
        "special": null,
        "translations": null,
        "validation": null,
        "validation_message": null,
        "width": "full"
      },
      "schema": {
        "name": "Data_Input_Text",
        "table": "Cloudron_Forum_Example",
        "data_type": "character varying",
        "default_value": null,
        "max_length": 255,
        "numeric_precision": null,
        "numeric_scale": null,
        "is_nullable": true,
        "is_unique": false,
        "is_indexed": false,
        "is_primary_key": false,
        "is_generated": false,
        "generation_expression": null,
        "has_auto_increment": false,
        "foreign_key_table": null,
        "foreign_key_column": null
      }
    }
  ],
  "relations": []
}

I hope my explanation made it a little more understandable.

Mario 0

Perfect explanation! Thanks for your patience: know things are much clearer

james

Hello @Mario-0
No problem, always happy to help.
