Qdrant on Cloudron - Community Package

[LoudLemur]

[Packaging Notes] Qdrant 1.18.2

Thank You Everybody!

We want to thank everybody in the Cloudron community for your excellent examples and inspiration.
You are amazing. This wouldn't have happened without you!

Please take a look in the Docs in the repo, especially the integrations. We have tried to setup this package so that it will work well with other applications on Cloudron. We also wanted it to be a bit easier to maintain.

We hope you like it.

What do you think of this format for announcing a new Community Package?

At a glance

Field	Value
Application	Qdrant
Upstream repo	https://github.com/qdrant/qdrant
Upstream version packaged	1.18.2 (pinned: yes, by sha256 digest)
Package repo	https://github.com/OrcVole/qdrant-cloudron
Packaging type	Community (written to official-track standard)
Current status	Working
Cloudron version tested	9.1.x
Base image	cloudron/base:5.0.0
Addons used	localstorage, proxyAuth, scheduler
Process model	single (one binary)
Memory limit set	2048 MB
Time invested	about one focused day
Difficulty	3
Would package again	Yes

TL;DR

Qdrant is a vector database written in Rust (similarity search over REST and gRPC, for RAG and
semantic search). Packaging succeeded and is verified live on a box: the SSO topology, a cross
version update, and a real backup then restore into a clean app all pass. The single most important
thing to know: Qdrant serves its web dashboard and its API on the same HTTP port, split only by path,
so scope the proxyAuth wall to the dashboard path only. A whole-domain auth wall would redirect
every API client to a login page and break all integrations.

Installation

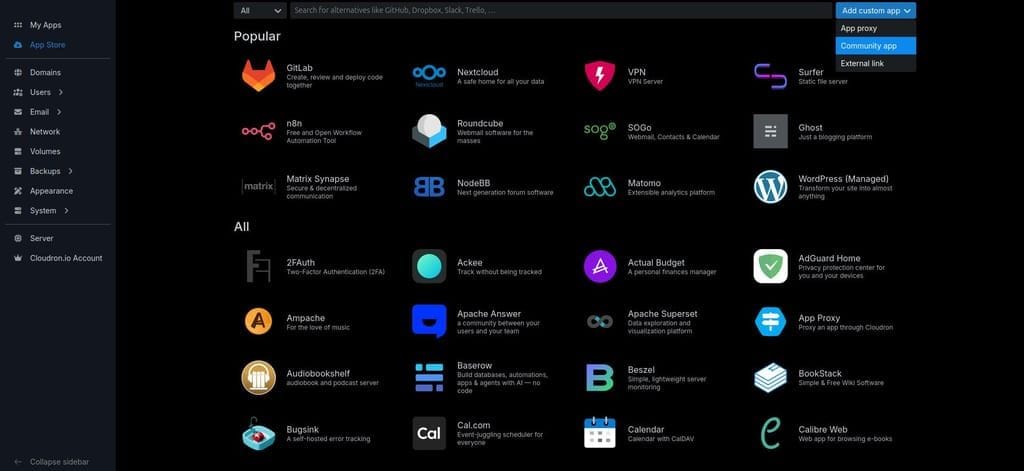

Click on the Add custom app drop down top right in the App Store and choose Community app:

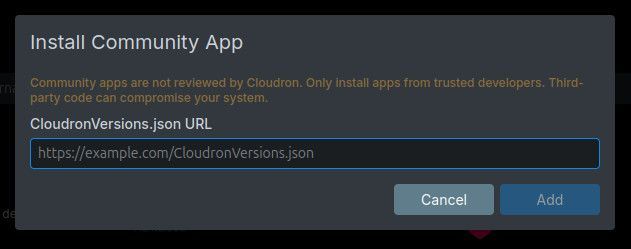

Then paste in the CloudronVersions.json URL into the box that pops up:

What worked well

• A single dynamically linked binary copied onto cloudron/base with a multi-stage build. The
  runtime surface is tiny (libc, libm, libgcc_s, libunwind, liblzma), all present on the base.
• Putting 100 percent of state under /app/data made the localstorage backup just work. A real
  backup create then clone into a fresh app carried the data, the config, and the API key.
• proxyAuth with a path restriction cleanly separates the two surfaces (dashboard behind SSO,
  API and gRPC left to the app's own key).
• Qdrant 1.18's strict_mode.max_resident_memory_percent (a percent of the cgroup limit) lets the
  package make Qdrant reject writes and stay alive under memory pressure, rather than be OOM killed.
• gRPC over a tcpPort with server reflection enabled means grpcurl and Rust clients (rig-qdrant)
  work against it with just the API key.

Gotchas and difficulties

Gotcha: manifest validation rejects the proxyAuth addon

• Symptom: cloudron install rejects the manifest at /addons before any build.
• Cause: the proxy-auth addon key is camelCase proxyAuth. The Cloudron packaging skill's addon
  reference shows it lowercase proxyauth, which the box rejects.
• Fix: "addons": { "proxyAuth": { "path": "/dashboard", "supportsBearerAuth": true } }.
• Routes to: documentation
• Tags: #manifest #addon-proxyauth #healthcheck

Gotcha: read-only filesystem warning at boot

• Symptom: boot log shows Failed to create init file indicator: .qdrant-initialized: Permission denied.
• Cause: Qdrant writes a marker into its working directory, which by default is the read-only
  /app/code.
• Fix: run Qdrant from a writable working directory (/run/qdrant) with the dashboard static
  dir and the config symlinked in. This also lets you set RUN_MODE=production and link the operator
  config as config/production.yaml, which silences a second config/development not found warning.
• Routes to: packaging-only (and a gentle upstream ask: let the marker path follow the data dir)
• Tags: #readonly-fs #permissions

Gotcha: app OOM-killed on the first real collection

• Symptom: the app restarts as soon as a collection is created or grown.
• Cause: the platform default memoryLimit is 256 MB; Qdrant keeps the HNSW graph and vectors in
  RAM by default.
• Fix: set memoryLimit to 2 GB and ship strict_mode enabled with
  max_resident_memory_percent so writes are rejected rather than the process killed. Document
  on-disk vectors and TurboQuant for larger collections. The guard counts heap, not page cache.
• Routes to: packaging-only
• Tags: #memory

Gotcha: /metrics returns 401

• Symptom: a Prometheus scrape of /metrics returns 401.
• Cause: /metrics is behind the API key; only /, /healthz, /livez, /readyz are open.
• Fix: scrape with the API key (a read-only key is enough).
• Routes to: documentation
• Tags: #auth #metrics

Gotcha: gRPC port unreachable behind Cloudflare

• Symptom: a gRPC client times out on the data-plane TCP port.
• Cause: a Cloudflare-proxied (orange-cloud) domain proxies only HTTP, so the raw TCP port does
  not pass.
• Fix: use a DNS-only (grey-cloud) record for the host serving the gRPC port. The channel is
  plaintext (the tcpPort is not TLS terminated), so use -plaintext and a trusted network.
• Routes to: Cloudron platform / documentation
• Tags: #tcpport #cloudflare #grpc

Gotcha: cloudron clone is interactive and "latest" did not resolve

• Symptom: cloudron clone ... --backup latest in a non-interactive shell dies with
  process.stdin.setRawMode is not a function, and even interactively latest returned
  Backup not found.
• Cause: clone prompts for a new TCP host port (the source's port is taken), which needs a TTY,
  and on a box with several backup sites the latest alias did not resolve.
• Fix: drive it through a pseudo-TTY (script -qefc "cloudron clone ..." /dev/null), feed the
  new port, and pass a concrete backup id from cloudron backup list instead of latest.
• Routes to: Cloudron platform (CLI)
• Tags: #cli #backup #clone

Gotcha: live backup of a running datastore is only crash-consistent

• Symptom: none in practice, but a concern: Cloudron copies /app/data live while the app runs.
• Cause: a live copy of an embedded datastore is crash-consistent, not transactionally
  consistent. backupCommand runs in a separate temp container and cannot quiesce the live process.
• Fix: rely on Qdrant's write-ahead log (it replays on restore; the empirical backup-restore
  cycle passed), and offer an opt-in in-container snapshot cron (scheduler addon, off by default)
  that writes a full Qdrant snapshot into the backup for a transactionally consistent artifact.
• Routes to: Cloudron platform / documentation
• Tags: #backup #consistency #wal

Gotcha: /app/data ownership resets across restart and restore

• Symptom: permission errors after a restore or update if ownership is assumed.
• Cause: ownership under /app/data is not preserved across backup and restore.
• Fix: chown -R cloudron:cloudron /app/data at the top of start.sh, every boot, before
  touching anything.
• Routes to: documentation
• Tags: #permissions

Gotcha: insecure-by-default upstream settings

• Symptom: none visible, but the defaults are unsafe in a container.
• Cause: Qdrant's API is open by default, telemetry is on, and snapshot recovery from arbitrary
  remote URLs is enabled (an SSRF risk).
• Fix: generate API keys on first run and inject them via QDRANT__SERVICE__API_KEY and
  QDRANT__SERVICE__READ_ONLY_API_KEY; set jwt_rbac: true; set telemetry_disabled: true; set
  service.enable_snapshot_url_recovery: false.
• Routes to: upstream app (secure defaults) / packaging-only
• Tags: #security #ssrf

Gotcha: io_uring under the container seccomp profile

• Symptom: none by default; relevant only if you enable the async scorer.
• Cause: Qdrant can use io_uring for quantized multi-vector rescoring, but Docker's default
  seccomp profile commonly restricts io_uring syscalls and there is no confirmed graceful fallback.
• Fix: leave storage.performance.async_scorer off (its default). Treat io_uring as an
  opportunistic speedup only, and check the container seccomp posture before enabling it.
• Routes to: Cloudron platform / upstream app
• Tags: #performance #seccomp #io_uring

Cloudron specifics

• Filesystem and persistence: /app/code is read-only, so Qdrant runs from a writable
  /run/qdrant working directory with static and config symlinked in. /app/data is the only
  persistent path; storage, snapshots, the operator config, and the keys are all forced there with
  QDRANT__STORAGE__STORAGE_PATH, QDRANT__STORAGE__SNAPSHOTS_PATH, and a seeded
  /app/data/config/production.yaml. No persistentDirs are needed.
• Addons: localstorage for the backup; proxyAuth scoped to path: /dashboard with
  supportsBearerAuth; scheduler for an opt-in snapshot task. The proxyAuth key is camelCase.
• Healthcheck: /healthz, which returns 200 as soon as the listener binds and bypasses the API
  key. Not /readyz, which returns 503 until shards load and would risk a restart loop during a
  large collection load.
• Manifest quirks: one httpPort (6333) carries both the dashboard and the API split by path; a
  tcpPort carries gRPC (6334), with a default host port outside the Linux ephemeral range;
  memoryLimit 2 GB; optionalSso: true; configurePath: /dashboard.
• Build and CLI: on-server build works with no local Docker; rootless podman works locally. The
  image is roughly 2.7 GB because cloudron/base is a full Ubuntu. The icon is not baked into the
  image; the CLI uploads logo.png at install or update, and a community (--versions-url) install
  takes its icon from iconUrl.

Notes for the Cloudron maintainers

Friendly asks for the platform, from packaging this app:

• iconUrl couples to the minBoxVersion floor. In a CloudronVersions.json, including iconUrl
  forces minBoxVersion >= 9.1.0, but omitting iconUrl makes the versions-url install fail
  validation (Invalid manifest: iconUrl is missing in manifest). So there is no 8.3.0-compatible
  versions-url manifest at all: any community-channel app is pinned to box 9.1.0+ purely by the icon
  requirement, even when the app itself runs fine on 8.3. Please either document this coupling, or
  decouple the icon from the version floor (accept a versions-url manifest without iconUrl and fall
  back to the file:// icon, or stop gating iconUrl at 9.1.0). Only the real --versions-url path
  surfaces this; on-server cloudron install validates a looser schema and accepts the same manifest
  at 8.3.0, so the failure is easy to miss until publish. (This vindicates the reference package's
  choice of 9.1.0.)
• Document the proxyAuth addon key casing. It is camelCase proxyAuth; the packaging skill's
  addon reference shows it lowercase, which fails manifest validation at /addons.
• A pre-backup hook that runs inside the live app container would let a stateful app quiesce or
  snapshot itself before the live /app/data copy. backupCommand runs in a separate temporary
  container and cannot reach the running process, so it cannot make a busy datastore's live copy
  transactionally consistent.
• Clarify proxyAuth path arrays and exclusions. The docs show a single path string; whether
  multiple positive paths or !-exclusions can be combined is undocumented.

Notes for the upstream developers

Friendly asks that would make Qdrant easier to run in any container:

• Document a minimum glibc version per release. The binary is dynamically linked, and a slim base
  image needs to know the floor; a toolchain bump that raises it fails at runtime, not build time.
• Provide a single-command, atomic "snapshot the whole storage to a directory" that is safe to run
  continuously, so a platform backup can capture a consistent artifact without quiescing the process.
• Clarify whether a live filesystem copy (rsync or tar) of the storage directory is restore-safe and
  exactly what the write-ahead log guarantees on recovery. This is the crux for managed-backup
  platforms.
• Consider a readiness signal on the main listener, or clearer health-versus-ready semantics, so a
  reverse proxy can health-check without choosing between "restart loops during load" and "reports
  healthy before ready".
• Default service.enable_snapshot_url_recovery to false; recovering snapshots from arbitrary URLs
  is a server-side request forgery risk in a networked container.

Reusable snippets

<details>
<summary>Dockerfile fragment (multi-stage copy plus build-time linkage gate)</summary>

ARG QDRANT_VERSION=v1.18.2
FROM qdrant/qdrant:v1.18.2@sha256:<digest> AS upstream
FROM cloudron/base:5.0.0@sha256:<digest>

COPY --from=upstream /qdrant/qdrant /app/code/qdrant
COPY --from=upstream /qdrant/static /app/code/static
COPY --from=upstream /qdrant/config/config.yaml /app/code/config/config.yaml
COPY start.sh /app/code/start.sh

# Fail the BUILD if the binary cannot resolve its libs or glibc on this base.
RUN set -eux; ldd /app/code/qdrant; \
    if ldd /app/code/qdrant 2>&1 | grep -qE 'not found'; then exit 1; fi; \
    /app/code/qdrant --version
WORKDIR /app/code
CMD [ "/app/code/start.sh" ]

</details>

<details>
<summary>start.sh fragment (ownership, key generation, run from a writable workdir)</summary>

#!/bin/bash
set -euo pipefail
chown -R cloudron:cloudron /app/data            # ownership is not preserved across restore

# generate keys once, inject via env (env overrides Qdrant's config files)
[ -f /app/data/.secrets/keys.env ] || { mkdir -p /app/data/.secrets; \
  printf 'QDRANT_ADMIN_API_KEY=%s\n' "$(openssl rand -hex 32)" > /app/data/.secrets/keys.env; }
. /app/data/.secrets/keys.env
export QDRANT__SERVICE__API_KEY="$QDRANT_ADMIN_API_KEY"
export QDRANT__STORAGE__STORAGE_PATH=/app/data/storage

# run from a writable cwd so Qdrant's marker file does not hit the read-only /app/code
mkdir -p /run/qdrant/config
ln -sfn /app/code/static /run/qdrant/static
ln -sf /app/data/config/production.yaml /run/qdrant/config/production.yaml
chown cloudron:cloudron /run/qdrant /run/qdrant/config
export RUN_MODE=production
cd /run/qdrant
exec gosu cloudron:cloudron /app/code/qdrant

</details>

Open questions

• The best practice for a transactionally consistent live backup of a running embedded datastore on
  Cloudron. A pre-backup hook that ran inside the live app container (rather than the separate temp
  container that backupCommand uses) would let the app quiesce or snapshot itself first.
• Whether proxyAuth supports an array of paths or path exclusions in one app; the docs show a
  single string. A single positive path was enough here.

References

• Package source: https://github.com/OrcVole/qdrant-cloudron
• Upstream docs: https://qdrant.tech/documentation/ and the repo config/config.yaml
• Cloudron packaging docs: https://docs.cloudron.io/packaging/

Verdict

Official-app candidate. It is a clean single-binary multi-stage build on the current base, with
correct read-only filesystem handling, a working unauthenticated health check, instant usability with
no setup screen, secure-by-default settings, a complete manifest with the official icon, and full
documentation, including verified upgrade and backup gates. Ship it on the community channel now; it
is written to the standard the official track expects.

---

#packaging-notes #qdrant #cloudron-9.1 #status-working

[timconsidine]

Who is Friendly ?

[robi]

@timconsidine The one who asks
