Need help connecting to Bedrock on LAN

Scheduled Pinned Locked Moved Solved Minecraft
networking
4 Posts 3 Posters 146 Views 3 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • B Offline
    B Offline
    benneic
    wrote on last edited by
    #1

    I've just done a fresh install of MC Bedrock and configured with default settings. But I can not seems to connect with it from the iPad app while connected on the same network/subnet.

    App Title and Version: Minecraft Bedrock 1.21.80.3
    App ID: 613cef5b-96ff-489d-a8bf-c1f9c07cd4b4
    Package Version: net.minecraft.bedrock.cloudronapp@2.35.5
    Installed At: 3:59 PM
    Last Updated: Never

    MC Bedrock Server console shows:

    IPv4 supported, port: 19132: Used for gameplay and LAN discovery
    IPv6 supported, port: 19133: Used for gameplay
    Server started.


    Scaning the server & port from my computer:

    benneic@MacBookPro ~ % nmap -p 19132 192.168.1.100
    Starting Nmap 7.95 ( https://nmap.org ) at 2025-05-15 16:38 AEST
    Nmap scan report for # (192.168.1.100)
    Host is up (0.012s latency).

    PORT      STATE  SERVICE
    19132/tcp closed unknown

    Nmap done: 1 IP address (1 host up) scanned in 0.11 seconds


    Scaning listening ports on my server host (192.168.1.100):

    benneic@chopsticks:~$ sudo netstat -l -p --numeric-ports | grep 19132
    tcp        0      0 0.0.0.0:19132           0.0.0.0:*               LISTEN      847/dockerd
    tcp6       0      0 [::]:19132              [::]:*                  LISTEN      847/dockerd
    udp        0      0 0.0.0.0:19132           0.0.0.0:*                           847/dockerd
    udp6       0      0 [::]:19132              [::]:*                              847/dockerd


    Scanning listening ports inside the MC Bedrock docker container:

    root@613cef5b-96ff-489d-a8bf-c1f9c07cd4b4:/app/pkg# sudo netstat -l -p --numeric-ports | grep 19132
    udp        0      0 0.0.0.0:19132           0.0.0.0:*                           -


    I am surprised there is not a tcp socket listening inside the docker host.

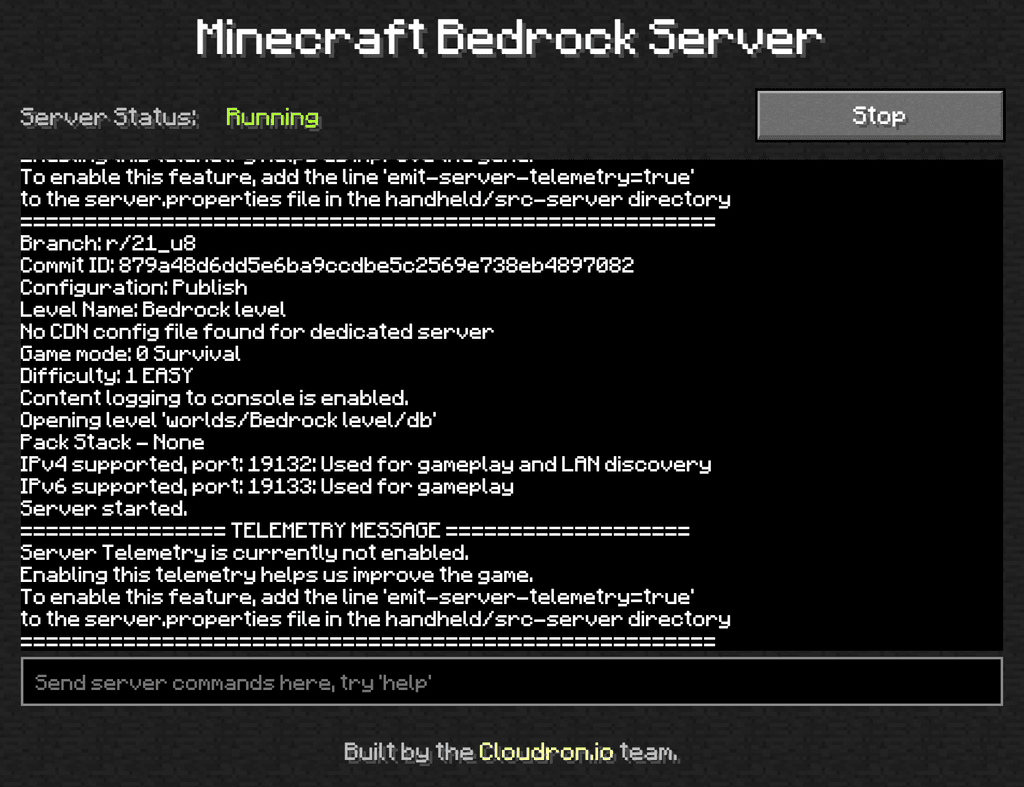

    As far as the server console and logs are concerned it looks like it is running:

    What am I missing here?

    1 Reply Last reply
    1
    • nebulonN Offline
      nebulonN Offline
      nebulon
      Staff
      wrote on last edited by
      #2

      Does your server have any extra firewall in front? Assuming you run this server at home, how did you expose that on the internet and can you maybe try to connect from the client with the public ip?

      1 Reply Last reply
      1
      • girishG Offline
        girishG Offline
        girish
        Staff
        wrote on last edited by
        #3

        @benneic BDS uses UDP and not TCP . The TCP configuration in package is misleading - https://git.cloudron.io/packages/minecraft-bedrock-app/-/merge_requests/23 removes it.

        Try udp scan -

        $ sudo nmap -sU -p 19132 116.203.196.36
        Starting Nmap 7.94SVN ( https://nmap.org ) at 2025-05-15 13:02 CEST
        Nmap scan report for static.36.196.203.116.clients.your-server.de (116.203.196.36)
        Host is up (0.031s latency).

        PORT      STATE         SERVICE
        19132/udp open|filtered unknown

        Nmap done: 1 IP address (1 host up) scanned in 0.65 seconds


        1 Reply Last reply
        0
        • B Offline
          B Offline
          benneic
          wrote on last edited by
          #4

          Solution was to connect from iPad to server using the FQDN pointing to the public IP of Cloudron.

          Unclear why I couldnt connect via private IP, but I was using local DNS pointing the FQDN to the private IP, so I switched that to the public ip. I think that is what fixed it.

          @girish thanks for the tip on the UDP scan, port was open via UDP on private IP.

          benneic@MacBookPro ~ % sudo nmap -sU -Pn -p 19132 192.168.1.100
          Starting Nmap 7.95 ( https://nmap.org ) at 2025-05-17 08:37 AEST
          Nmap scan report for # (192.168.1.100)
          Host is up (0.0025s latency).

          PORT      STATE         SERVICE
          19132/udp open|filtered unknown

          Nmap done: 1 IP address (1 host up) scanned in 0.32 seconds

          1 Reply Last reply
          1
          • nebulonN nebulon marked this topic as a question on
          • nebulonN nebulon has marked this topic as solved on
